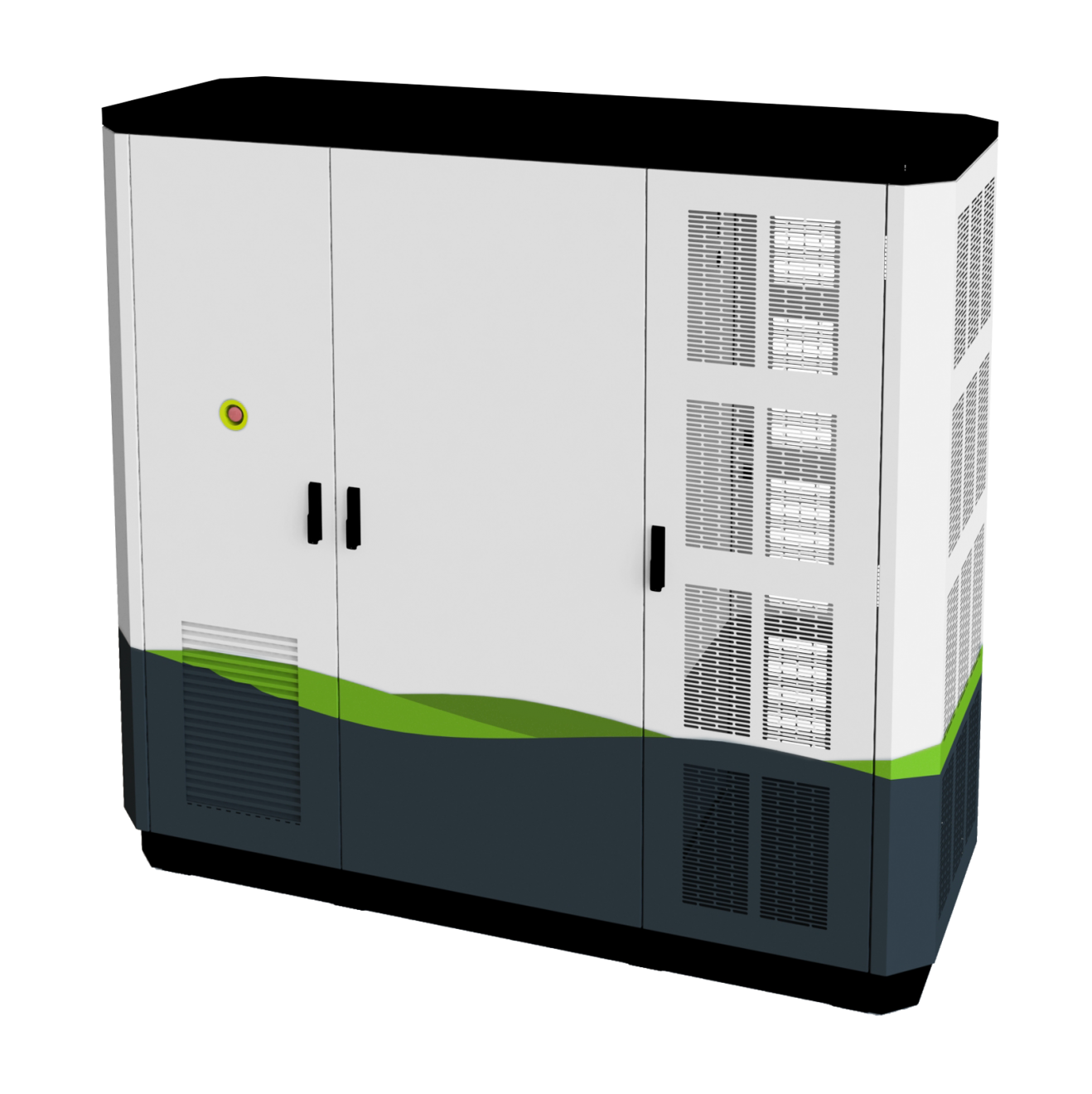

DC Power House Charger

UDC60012GADC High Power Charger is designed as low noise split and multi charging point application. 600kW high power output which supports up to 12 charging guns. Optional liquid cooled 500A charging cable can be combined with the standard 350A charging cable each to get max power through the intelligent power switching. Full liquid cooled power module application for high protection and reliability.

Dispenser options

OCPP 1.6 J support with update fi rmware to 2.0
P&C, smart charge and power management support
Standard 350A charging cable - Optional 500A liquid cooled charging cable
Standard 7” TFT capacitive touch screen LCD
LAN and LTE wireless support, OTA support
RFID authorization
Payment terminal integration

Key features 600kW

CE, RED, CB and TUV US/CA certifi cation
IP65 power conversion area in the powerhouse
Full liquid cooled power modules
Intelligent power switching matrix
Low noise - less than 65dB
Easy output power confi guration from 300 to 600kW
Output voltage up to 1000V
Supports up to 12 charging guns (single or dual)

DOWNLOAD PRODUCT LEAFLET

Key features 700kW

700kW V2G power 400 or 480V grid standard
IP65 power conversion area in the powerhouse
Full liquid cooled power modules
Intelligent power switching matrix
Low noise - less than 65dB
Easy output power confi guration from 350 to 700kW
Output voltage up to 1000V
Supports up to 12 charging guns (single or dual)

DOWNLOAD PRODUCT LEAFLET

Key features 800kW

300Vdc – 900Vdc input to DC Bus
IP65 power conversion area in the powerhouse
Full liquid cooled power modules
Intelligent power switching matrix
Low noise - less than 65dB
Easy output power confi guration from 400 to 800kW
Output voltage up to 1000V
Supports up to 12 charging guns (single or dual)
