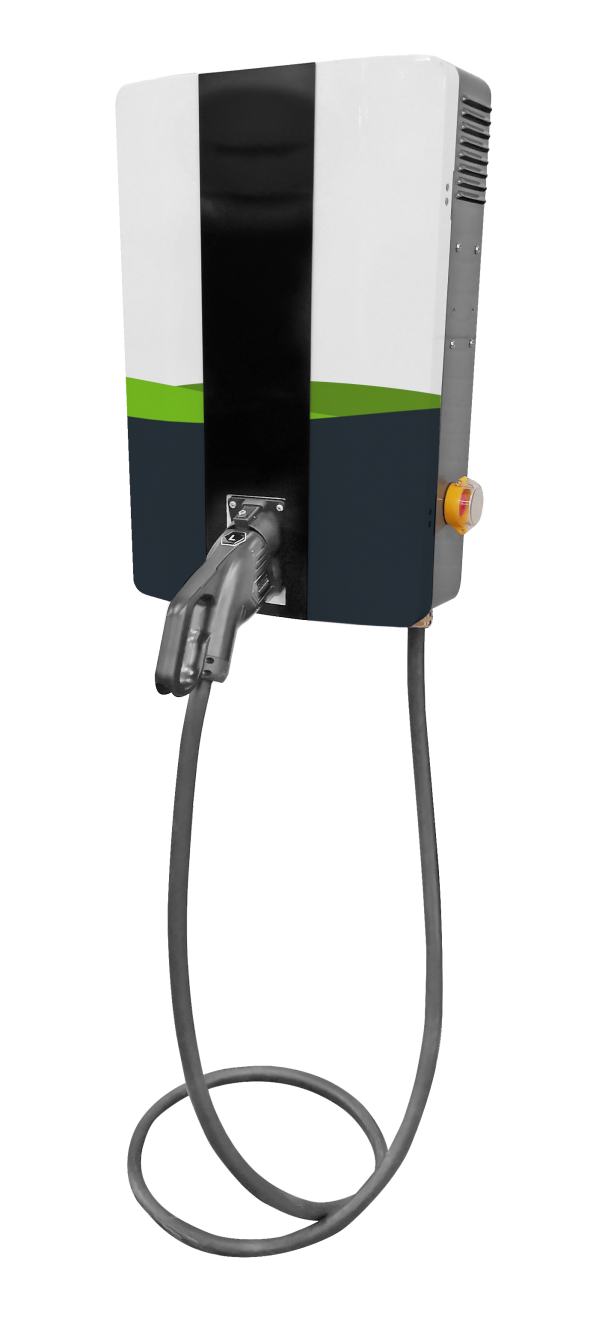

V2G DC Charger Wallbox

Udenco pure White Label DC chargers provide the perfect mix of high quality, efficiency, and innovation, all while being a cost-effective electric vehicle charging point. They are designed to offer full Mode 4 fast charging for electric vehicles (EV/PHEV). The softwareagnostic integration allows for seamless connection to the charging management system, offering flexibility for easy operation, monitoring, and maintenance.

Custom features
High efficiency
Innovation
Low noise design
IP54/IP65 protection

Key features 30kW / 40kW

Pedestal (optional)
Single CCS, holder front, side (optional)
Standard LAN connection
4G (optional)
Integrated hardware and software controller
Display (optional)
Input voltage: 3 x 400VAC
Output power: 1 x 30kW / 1 x 40kW
Voltage range: 200V - 1000V
Housing dimensions: approx. 710 mm x 480 mm x 225 mm
Weight: approx. 60kg

DOWNLOAD PRODUCT LEAFLET

Key features V2G/V2H 7-11kW

11kW DC charger with AC three phase for CCS, NACS
CHAdeMO or GBT standard
V2G, V2H, B2G, B2H configuration
V2H Box to realize the off grid power backup
Wide DC voltage range from 150V to 1000V
One key manual charging and discharging
V2G EV charger
B2G Energy storage battery inverter
V2H/B2H application with optional off grid V2H box
Residential off grid backup power supply
